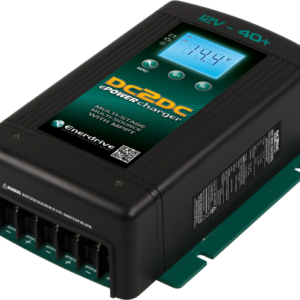

Enerdrive 12v 40A+ DC2DC Battery Charger

Features:

• Dual Independent DC Inputs: Charges one house battery bank from both engine and solar sources.
• DC M6 Screw Terminals: Accommodate large battery cable connections from all sources.
• Dedicated MPPT Solar Regulator: Optimizes solar charging.
• Versatile Battery Algorithms: Supports GEL, AGM, Flooded, Lithium, and custom profiles.
• Vehicle Input: Accepts 12V or 24V, with a max solar input of 45V/800W.
• High Output: Up to 40A+ even at temperatures exceeding 40°C, with fan cooling.
• Programmable LCD Display: Shows charging source, status, voltage, and amperage.
• Temperature Sensor Included: Ensures precise battery charging.

The Enerdrive ePOWER DC2DC+ Battery Charger is a highly advanced, fully automatic multistage charger. It charges your house battery bank from either your vehicle’s alternator or solar power, thanks to the built-in Maximum Power Point Tracking (MPPT) Solar Controller. The unit seamlessly selects the charging source, with no need for external relays.

During its operation, the ePOWER DC2DC+ takes your house battery through a complete charge cycle, supporting various battery types, including GEL, AGM, Flooded, Custom Programmable, or Lithium. Once the battery reaches the float stage, the charger transforms into a power supply mode to sustain onboard DC loads.

Multistage Charging Process:

The ePOWER DC2DC+ employs a set-and-forget approach, utilizing charger algorithms that maximize the lifespan of deep cycle batteries. It provides a multistage charging sequence recommended by battery manufacturers, ensuring swift and precise charging. The charger consists of three primary charge stages:

• Bulk or Boost Charge: Charges at full output current until the battery reaches its absorption voltage, rapidly recovering around 80% of the battery’s capacity.
• Absorption Charge: Maintains a steady charger voltage while replacing the remaining 20%, allowing the current to taper off as the battery nears full charge.
• Float: The charger voltage is lowered and held at a constant and safe level to prevent overcharging. It compensates for self-discharge and supports additional loads connected to the battery.

Smart Charging Feature:

The ePOWER DC2DC+ adapts its output based on the loads connected to your battery bank, preventing overcharging. It features two load-based regulation methods, ensuring a smooth transition to float mode when necessary, preserving the battery bank’s longevity.
