Enerdrive EPro Plus Battery Monitor

Discover the ePRO PLUS, our cutting-edge battery monitor featuring an intelligent shunt and a remote control display unit. Designed with a Grid Optimized footprint for seamless integration with our DC Modular products, this advanced monitor offers more than just accurate battery state-of-charge readings.

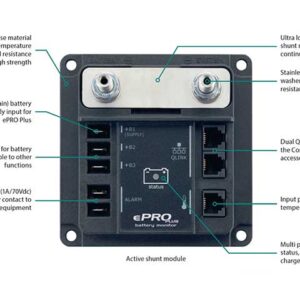

Compatible with both lead-based and Lithium batteries (LiFePO4), the ePRO PLUS can monitor up to three battery banks. Customize inputs for banks 2 and 3 for various purposes, including mid-point voltage measurement, keyswitch input, setup lock, or backlight control. It can measure DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc, making it suitable for monitoring 12V to 48V lead or lithium-based batteries.

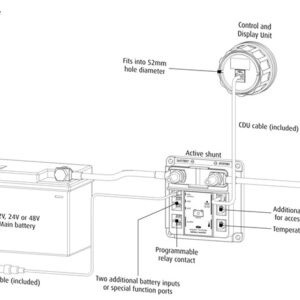

Installation is a breeze, requiring only one supply wire to the intelligent shunt base and a single ‘QuickLink’ cable connecting the shunt base to the control/display unit (CDU). The package includes the fused supply wire and QuickLink cable, eliminating the need for a separate connection kit.

ePRO PLUS Alarm Output Expander (EN5093120 Optional):

Enhance your ePRO PLUS functionality with the 2-Channel Alarm Expander Kit. This optional kit adds two extra alarm relays to your ePRO PLUS device through the Quicklink port. It’s perfect for applications where distinct alarm types require separate relay contacts.

The Alarm Expander also doubles as a relay contact, combining relays A and B to control the ‘open (reset)’ and ‘close (set)’ coils of a dual-coil magnetically latching contactor. The choice of relay contact depends on whether the contactor needs to operate in a Normally Open (NO) or Normally Closed (NC) configuration.
